AVK SMART WATER, VIDI CAP for Storz

Smart hydrant cap for threaded Storz B

Lars Reinhard Rasmussen, Product Manager, AVK Smart Water

Contact

Lars Reinhard Rasmussen

Product Manager, AVK Smart Water

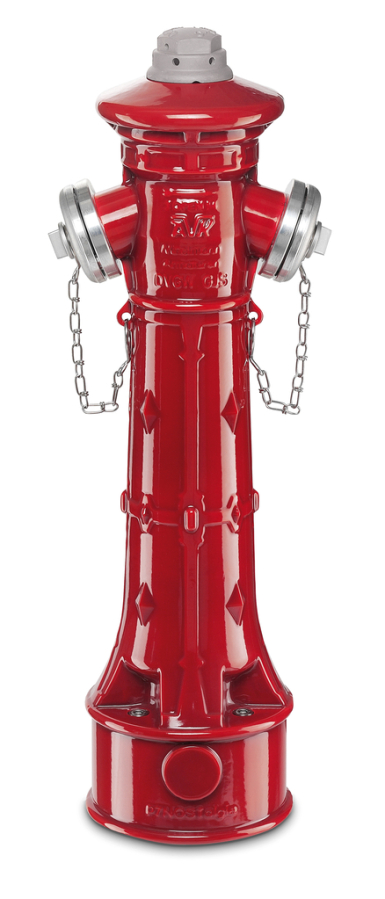

VIDI Cap is a battery-operated smart hydrant cap installed on fire hydrants e.g. on AVK's S84. VIDI Cap registers the hydrant cap's position and transmits data wirelessly.

VIDI Cap for Storz is a smart cap providing information about the open or close status of hydrant outlets. This IoT sensor detects if the cap is being taken off the hydrant outlet and transmits data wirelessly. The device can be installed on new or already existing hydrants with a threaded Storz B outlet.

By regularly transmitting data, VIDI Cap provides information about the hydrant cap's position. With continuous monitoring, VIDI Cap can help detect unauthorised use and minimise theft and the amount of Non-Revenue Water via hydrants.

fire
fire
Variant 3002/002-001

Features

Cap:

  • Communication: NB-IoT (band 8 & 20) or LoRa® (868MHz)
  • Detects the open or close status of the hydrant outlet and transmits data to the VIDI Cloud or a third-party software
  • Material: Robust plastic cover, IP68*
  • Easy provisioning and configuration via NFC (Via AVK Assist app)
  • Operating temperature: -20 up to +65 °C
  • Fits on: Threaded Storz B couplings
  • Connection key: Oval or triangle
  • Thread size: Rd 65 x 1/6
  • Transmits data immediately when the cap position change and retransmit the value after 5 min, 10 min, 1 hr, 6 hrs, 12 hrs, 24 hrs.
  • Transmits a keep-alive signal every 24 hrs if the position has not changed



Battery:

  • Embedded battery with up to 10-year lifespan**
  • Max. voltage output: 3.6 V
  • Size: 1x AA-cell (NB-IoT and LoRa®)
  • Capacity / cell: 2600 mAh



* IP68: Maximum 24 hours of continuous submersion at 1 meter depth.

** Battery life depends on installation, environmental conditions and user interactions. Installation in areas with poor communication signal, low temperatures, use of iron covers or frequent network reconnections can affect battery life.

Downloads

Datasheet
Installation, Operation & Maintenance
Product Brochure
Guidelines

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. Communi-
cation
Key
H3
mm
D
mm
Theoretical
weight/kg
3002-002-003-000 LORA TRIANGLE 91 126 0.9
3002-002-004-000 LORA OVAL 91 126 0.9
3002-002-008-000 NB-IOT TRIANGLE 91 126 0.9
3002-002-009-000 NB-IOT OVAL 91 126 0.9
Enquiry
Scroll for more info

Components

1. Storz B w. thread Alu-alloy 44300
2. VIDI Cap Luran S 778T (ASA)
3. Screws, external Stainless steel A2
4. Sealing EPDM rubber

Standards

  • EMC, RED, REACH, RoHS, CE

    Designed according to DIN 14318_1985
