AVK VALVE FOUNDATION
For AVK gate valves with PE pipe ends
Contact
AVK International A/S
Bizonvej 1, Skovby, 8464 Galten, Denmark

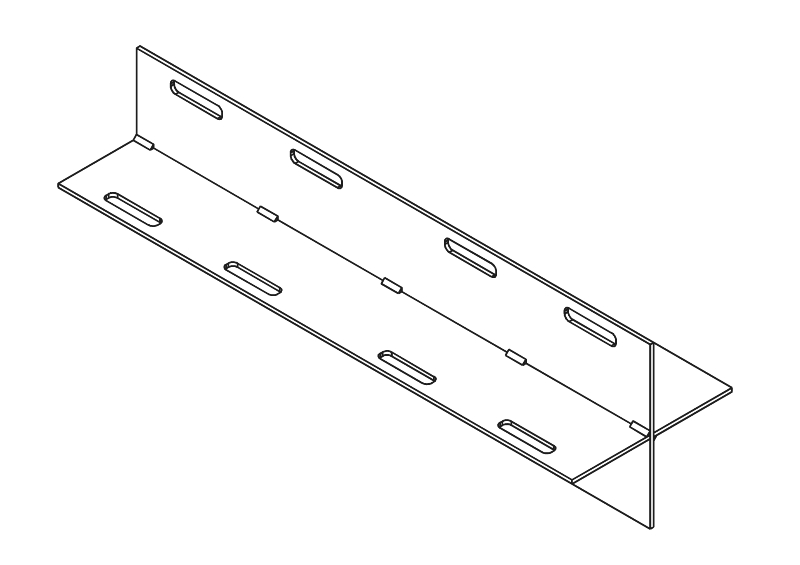

Valve foundation for series 36 gate valves with PE ends
AVK valve foundation secures a stable installation of series 36 gate valves with PE ends as it prevents the opening and closing torques from being transferred to the PE pipe.
| Variant 36/15-001 | |
|---|---|
| Connection: | Flange x PE Pipe End |
| Material: | Steel |
| DN: | DN25 - DN100 |
Features
- For DN 25-100
- Foundation of hot galvanized steel grade 37
- Slots in the foundation make it possible to strap the valve
- Two plastic binders included
Downloads
Datasheet
Reference nos. and dimensions:
Scroll for more info
| AVK ref. no. | DN/DN |
L mm |
H mm |
Theoretical weight/kg |
|---|---|---|---|---|
| 36-032-15000 | 25 - 40 | 240 | 60 | 1.0 |
| 36-063-15000 | 50 - 100 | 450 | 100 | 1.5 |
Enquiry
Scroll for more info
Components
| 1. | Foundation | Steel, hot dip galvanized |
Use with this product

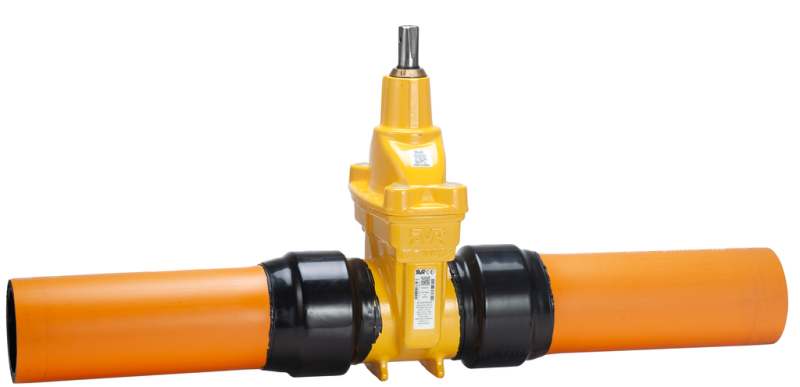

AVK GATE VALVE, PE PIPE ENDS, PN10
