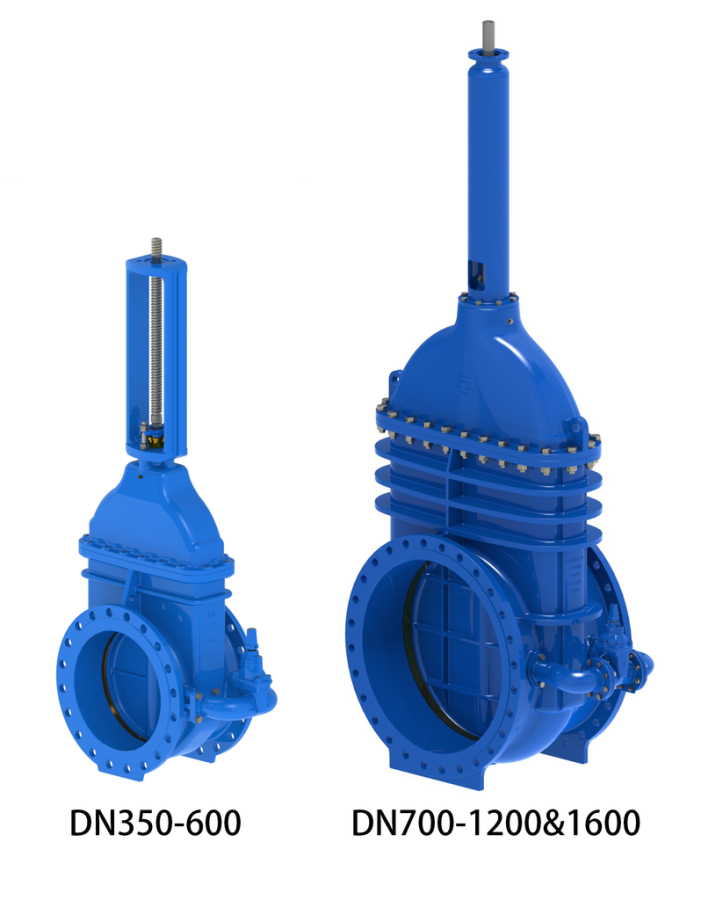

AVK GATE VALVE, METAL SEATED, OS&Y, PN10/16

F16 ISO flange, with by-pass, DN350-1200

AVK headquater in Skovby Galten, Denmark

Contact

AVK International A/S

Bizonvej 1, Skovby, 8464 Galten, Denmark

Metal faced gate valve for drinking water and neutral liquids to max. 70°C

AVK metal seated wedge gate valves are primarily designed for the flow isolation of a length of pipeline or piece of equipment. It uses a ductile iron gate that houses bronze rings to ensure a watertight seal. The non-rising stem design ensures the stem thread is adequately lubricated by the water passing through the valve. In essence, the whole internals are water dependent for lubrication, a factor that safeguards the longevity of the valve.

Variant 54/3334-007
Connection: Flanged
Material: Ductile Iron
DN: DN350 - DN1200
PN: PN16
Closing direction: Clockwise to Close or Clockwise to Open

Features

  • High strength alu-bronze valve seat
  • Metal faces machined to a high finish for optimum contact and minimum leakage
  • Outside yoke and rising stem for clear indication of valve status at a distance
  • Stem in stainless steel
  • DN350-600 NBR wiper ring protects against dirt from outside
  • Stuffing box with ample depth gives long life to the PTFE packing
  • Round body-bonnet O-cord gasket fixed in a recess to avoid blow-out
  • Full bore
  • Lifting eyes for easy handling
  • All rubber and coating in contact with the water are drinking water approved
  • Guides on the wedge helps provide steady operation
  • DN350-600 protected fasteners in galvanized 8.8 steel, exposed fasteners in A4 stainless steel
  • DN≥700 fasteners in galvanized 8.8 steel
  • DN 350-1000 protected by 250µm blue fusion bonded epoxy coating
  • DN≥1100 protected by 250µm blue 2-pack epoxy coating
  • A by-pass valve is fitted to reduce differential pressure and facilitate operation

Downloads

Datasheet

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Closing
Direction		 Flange
drilling		 L
mm		 H1
mm		 H2
mm		 HO
mm		 W
mm		 W1
mm		 F2
mm		 Actuator
Flange		 By-pass
DN		 Theoretical
weight/kg
54-0350-33-0106100 350 CTC PN10 381 1380 265 1852 787 507 94 14 50 313
54-0350-33-1106100 350 CTC PN16 381 1380 265 1852 787 507 94 14 50 313
54-0400-33-0106100 400 CTC PN10 406 1455 295 1980 839 537 94 14 50 346
54-0400-33-1106100 400 CTC PN16 406 1455 295 1980 839 537 94 14 50 346
54-0450-33-0106100 450 CTC PN10 432 1542 325 2118 932 597 94 14 80 470
54-0450-33-1106100 450 CTC PN16 432 1542 325 2118 932 597 94 14 80 470
54-0500-33-0106100 500 CTC PN10 457 1777 365 2398 1002 637 94 14 80 585
54-0500-33-1106100 500 CTC PN16 457 1777 365 2398 1002 637 94 14 80 585
54-0600-33-0106100 600 CTC PN10 508 1948 430 2666 1117 697 94 14 80 705
54-0600-33-1106100 600 CTC PN16 508 1948 430 2666 1117 697 94 14 80 705
54-0700-33-0106100 700 CTC PN10 610 2173 455 2913 1359 834 105 14 100 1500
54-0700-33-1106100 700 CTC PN16 610 2173 455 2913 1359 834 105 14 100 1500
54-0800-33-0106100 800 CTC PN10 660 2483 535 3383 1488 908 125 14 100 2000
54-0800-33-1106100 800 CTC PN16 660 2483 535 3383 1488 908 125 14 100 2000
54-0900-33-0106100 900 CTC PN10 711 2763 596 3723 1603 948 125 16 100 2700
54-0900-33-1106100 900 CTC PN16 711 2763 596 3723 1603 948 125 16 100 2700
54-1000-33-1106100 1000 CTC PN16 813 3083 648 4308 1707 1005 169 16 100 2850
54-1200-33-1306100 1200 CTC PN16 914 3591 773 4984 2036 1180 126 16 150 4878
2D/3D drawings
Enquiry
Scroll for more info

Components

1. Body Ductile iron GJS-500-7 (GGG-50)
2. Seat ring Alu-bronze CC331G (AB1)
3. Face ring Alu-bronze CC331G (AB1)
4. Wedge Ductile iron GJS-500-7 (GGG-50)
5. Wedge nut Alu-bronze CC333G (AB2)
6. Pin Stainless steel
7. Stem Stainless steel 1.4057 (431)
8. O-cord EPDM rubber
9. Bonnet Ductile iron GJS-500-7 (GGG-50)
10. Air plug Stainless steel
11. Packing PTFE
12. Gland Ductile iron GJS-500-7 (GGG-50)
13. Yoke Ductile iron GJS-500-7 (GGG-50)
14. Bolts Steel, hot dip galvanized
15. By-pass valve
16. O-ring EPDM rubber
17. Gland follower Ductile iron GJS-500-7 (GGG-50)
18. Wiper ring NBR rubber metal insert
19. Bushing Brass
20. Seal Hot melt glue
21. Bolts Steel, hot dip galvanized

Test/Approvals

  • Hydraulic test according to EN 1074-1 and 2 / EN 12266

Standards

  • Designed according to EN 1074 part 1 & 2, Designed according to NBR 12430
  • Standard flange drilling to EN1092-2 (ISO 7005-2), PN10/16
