AVK FLEXIBLE COMBI-CROSS, FLANGED, PN10/16

With blind flange on centre part, DN100-400

AVK headquater in Skovby Galten, Denmark

Contact

AVK International A/S

Bizonvej 1, Skovby, 8464 Galten, Denmark

Flexible combi-cross DN 100-400 with blind flange on centre part. For water and neutral liquids to max. 70° C

The flexible combi-cross offers optimal flexibility in both installation and potential retrofit of the valves. It has a full bore in the centre part and can be supplied with valve sizes from DN80 up to max centre part size or alternatively a flange outlet or blind cap. The connection valves are mounted on the centre part by a two-part bracket system which ensures an easy vertical replacement/installation by valves in other dimensions without the need for special tools. The gate valves are in the renowned AVK design.

Variant 18/11-001
Connection: Flanged
Material: Ductile Iron
DN: DN100 - DN400
PN: PN16
Closing direction: Clockwise to Close

Features

  • Flexible solution with easily replaceable valves due to the unique bracket connection
  • Centre outlet mounted with DN100 blind flange
  • The centre outlet allows for easy insertion of a full bore cleaning device
  • Solid design with strong fixation lugs
  • The face-to-face dimension is kept to a minimum for convenient installation in chambers
  • Fixed, integral wedge nut of brass CW626N prevents vibration and ensures durability
  • Wedge fully vulcanised with drinking water approved EPDM rubber and equipped with wedge shoes to provide smooth operation
  • Large conical stem hole in the wedge prevents stagnant water
  • Wedge and body guide rails ensure stable operation
  • Stainless steel stem with wedge stop and rolled threads for high strength
  • Full circle thrust collar provides fixation of the stem and low free running torques
  • Triple safety stem sealing with an NBR wiper ring, a polyamide bearing with four NBR O-rings and an EPDM rubber manchette
  • Round EPDM bonnet gasket fixed in a recess
  • Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
  • Full bore, low closing and operating torque
  • All flanges are free flanges without need for stud bolts
  • Fusion bonded epoxy coating in compliance with DIN 3476 part 1 and EN 14901, GSK approved

Downloads

Datasheet
Environmental Product Declaration (EPD)
Appendix
Installation, Operation & Maintenance

Reference nos. and dimensions:

Scroll for more info
AVK ref. no. DN
mm		 Flange
drilling		 Conn.1
mm		 Conn.2
mm		 Conn.3
mm		 Conn.4
mm		 L
mm		 L1
mm		 L2
mm		 L3
mm		 H1
mm		 H3
mm		 Theoretical
weight/kg
18-100-11-222204164 100 PN10/16 100 100 100 100 580 30 155 320 185 490 99
18-100-11-222804164 100 PN10/16 100 100 100 BL. CAP 580 30 155 320 185 490 84
18-150-11-333304164 150 PN10/16 150 150 150 150 620 35 155 320 190 590 156
18-150-11-333804164 150 PN10/16 150 150 150 BL. CAP 620 35 155 320 190 590 133
18-200-11-444404064 200 PN10 200 200 200 200 750 40 155 320 195 685 238
18-200-11-444404164 200 PN16 200 200 200 200 750 40 155 320 195 685 238
18-200-11-444804064 200 PN10 200 200 200 BL. CAP 750 40 155 320 195 685 200
18-200-11-444804164 200 PN16 200 200 200 BL. CAP 750 40 155 320 195 685 200
18-250-11-555504064 250 PN10 250 250 250 250 960 20 205 430 200 900 400
18-250-11-555504164 250 PN16 250 250 250 250 960 20 205 430 200 900 400
18-250-11-555804064 250 PN10 250 250 250 BL. CAP 960 20 205 430 200 900 335
18-250-11-555804164 250 PN16 250 250 250 BL. CAP 960 20 205 430 200 900 335
18-300-11-666604064 300 PN10 300 300 300 300 1050 23 205 430 228 970 550
18-300-11-666604164 300 PN16 300 300 300 300 1050 23 205 430 228 970 550
18-300-11-666804064 300 PN10 300 300 300 BL. CAP 1050 23 205 430 228 970 456
18-300-11-666804164 300 PN16 300 300 300 BL. CAP 1050 23 205 430 228 970 456
18-400-11-777704064 400 PN10 400 400 400 400 1470 95 220 665 290 1241 1122
18-400-11-777704164 400 PN16 400 400 400 400 1470 95 220 665 290 1241 1122
18-400-11-777804064 400 PN10 400 400 400 BL. CAP 1470 95 220 665 290 1241 934
18-400-11-777804164 400 PN16 400 400 400 BL. CAP 1470 95 220 665 290 1241 934
Enquiry
Scroll for more info

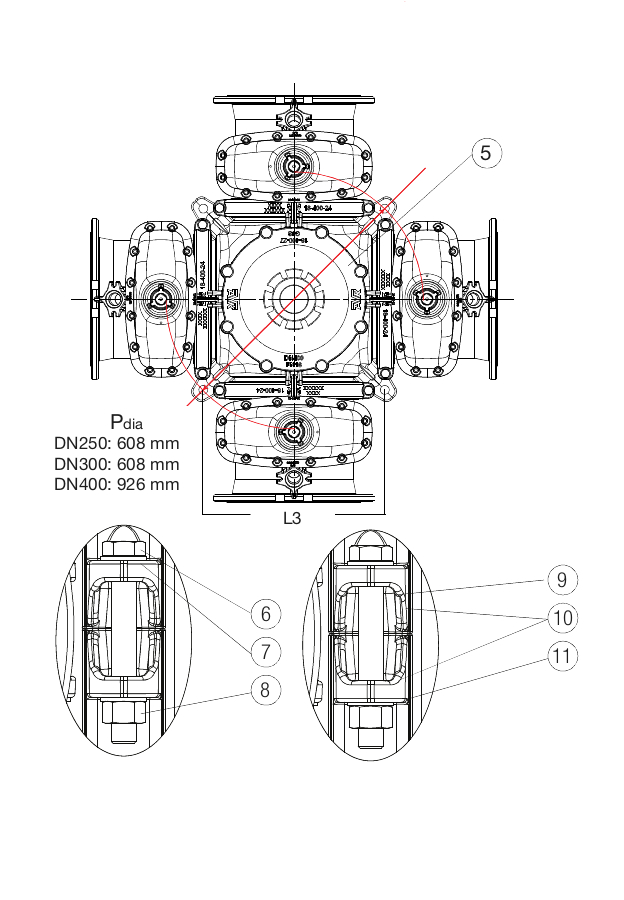

Components

1. O-ring EPDM rubber
2. Gasket EPDM rubber
3. Assembly bracket Ductile iron GJS-500-7 (GGG-50)
4. Combi-cross Ductile iron GJS-500-7 (GGG-50)
5. Centre outlet flange Ductile iron GJS-500-7 (GGG-50)
6. Bolt for assembly bracket Stainless steel A2
7. Washer Stainless steel A4
8. Hexagon nut for assembly bracket Stainless steel A4
9. Bolt for centre outlet top flange Stainless steel A2
10. Washer Stainless steel A4
11. Hexagon nut for centre outlet flange Stainless steel A4

Test/Approvals

  • Hydraulic test according to EN 1074-1 and 2 / EN 12266 |
  • Complete unit shell tested at 1.1 x PN (valve design pressure in bar) |
  • Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test.

Standards

  • Designed according to EN 1074 part 1 & 2, Designed according to EN 1171
  • Standard flange drilling to EN1092-2 (ISO 7005-2), PN10/16
