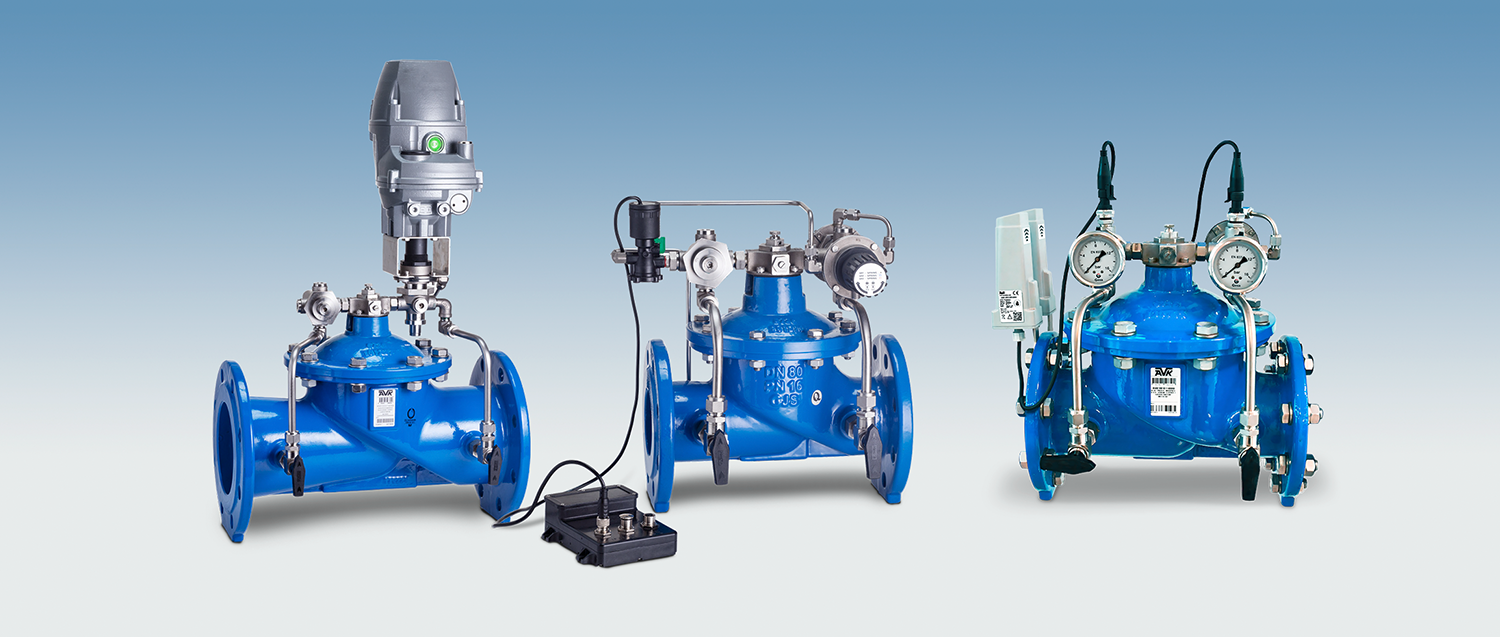

Control valve variants and configurations
Our standard range include pressure reducing, pressure sustaining/relief valves and constant flow valves, and with our online sizing tool you will get guidance for selection of the suitable type and dimension.

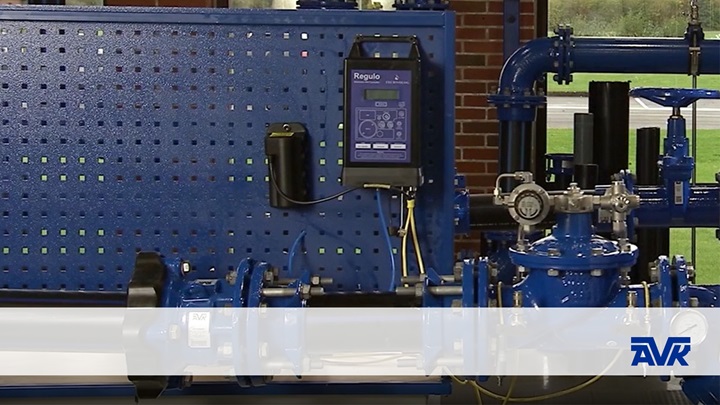

Pressure reducing valve
Automatically reduces a higher inlet pressure to a lower outlet pressure regardless of changes in flow rate or inlet pressure.
Pressure sustaining/relief valve
Automatically maintains a minimum preset inlet pressure by relieving excess pressure regardless of changes in flow rate.
Constant flow valve
Automatically monitors the flow and regulates if required, to secure that the flow does not exceed the maximum allowed flow regardless of changes in the supply pressure.
On request, we also offer other control valve variants such as:
Surge anticipation valve
Automatically opens to relieve overpressure. It protects the pipe system against pressure surges, mainly happening at pump start-up or in the event of failures.
Altitude valve
Automatically controls the water levels in tanks or reservoirs using the water column as reference.
One-way: The altitude pilot senses the water level and opens to refill, once the level drops below set point.
Two-way: Like one-way, but furthermore, the valve opens for returning the flow in case the inlet pressure is lower than the tank/reservoir pressure.
Float level valve
Automatically controls the water levels in tanks or reservoirs using a remote ball float as pilot.
Modulating: The modulating float is remotely installed and controls the tank/reservoir level at a defined set point. The valve closes tightly at desired level and opens, if filling is needed.
Non-modulating: The non-modulating float keeps the valve closed until the tank/reservoir level reaches the minimum acceptable set point. Then the control valve opens fully to refill, until it reaches the maximum acceptable set point, and the valve closes.
Solenoid control valve
Automatically either closes or opens the main valve.
Dual solenoid control valve
Automatically controlled by electrical signals. The control valve offers full regulation of pressure, flow and level.
Multi-function and solenoid override
Multi-function control valves, such as a combined pressure reducing and pressure sustaining control valve, are also part of the range. Furthermore, many of the variants are available with solenoid override, where an electric signal either closes or opens the main valve.
Optional configurations
AVK also offers accessories such as pressure gauges, battery-operated IoT sensors for pressure and flow measurements and position indicators as well as special configurations e.g. with PLC, electrical actuator, built-in anti-cavitation trim, lifting lugs and flush valve on the filter. Are you looking for further answers regarding control valves and their function? Find our FAQ and all relevant downloads here
Please contact our Product Manager about the optional variants and configurations.
